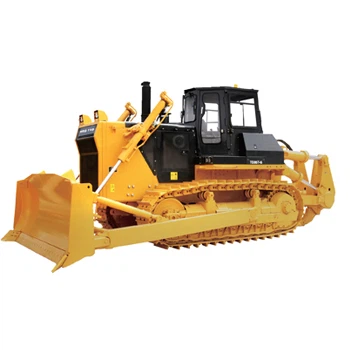

TD35T-5 BULLDOZER
Features
Power system
Chongqing Cummins NTA855-C360S10 engine with the exhaust turbocharger features the high power, efficiency and energy saving.
The Cummins or Weichai engines are optional depending on user requirements.
Drive system
A highly reliable power shifting gearbox, a stable hydraulic torque converter, and a two-stage straight tooth final drive can all efficiently transmit power, possessing high transmission power and efficient production efficiency.
Hydraulic torque converter can protect the transmission system from sudden torque impact and vibration.
The planetary power shift gearbox has forward and reverse gears, and adopts a large diameter, high capacity, oil cooled clutch with high transmission efficiency.
Ease Of Maintenance And Operation Comfort
The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab provides a more spacious interior and wider field of view.
Adaptability To Diverse Working Conditions
The machine is equipped with a straight tilt blade for enhanced cutting force, making it well-suited for diverse materials such as clay and frozen soil. With large ground clearance, the machine demonstrates excellent possibility.
Classification of bulldozers:
1. Classified by walking mode
Bulldozers can be divided into track type and tire type. Crawler bulldozers have high traction force, low ground pressure (0.04-0.13mpa), strong climbing ability, but low driving speed. Tire type bulldozers have the advantages of fast driving speed, strong flexibility, short operation cycle, convenient transportation and transfer, but low traction, making them suitable for construction sites and frequent changes in on-site work.
2. Classified by purpose

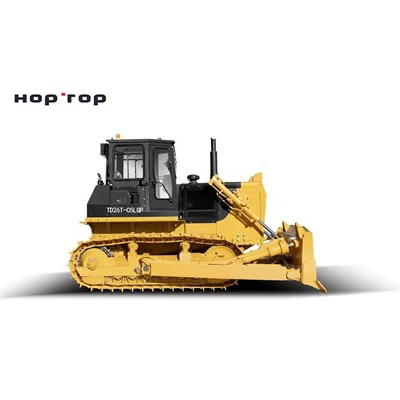

It can be divided into general and specialized types. The universal type is produced according to standards and is widely used in earthwork engineering. Specially designed for specific working conditions, there are wetland bulldozers and swamp bulldozers that use triangular wide track plates to reduce ground pressure, amphibious bulldozers, underwater bulldozers, cabin bulldozers, unmanned bulldozers, and bulldozers operating in high-altitude and high humidity conditions.
Technical specifications
|
|
ENGINE |
Model & type |
Cummins NT855-C280S10; In-line, water cooled 4-cycle, overhead valve direct injection, turbocharged diesel |
|
Rated power |
162 kW |
||
|
Number of cylinders |
6-139.7 x 152.4 mm (bore x stroke) |
||
|
Piston displacement |
14.01 L |
||
|
Min. fuel consumption |
205 g/kW·h |
||
|
Maximum torque |
1030 N·m@1250rpm |
|
|
POWER TRANSMISSION SYSTEM |
Torque converter |
3-element, 1 stage, 1 phase |
|
Transmission |
Planetary gear, multi-disc clutch, power shift, forced lubrication |
||
|
Main drive |
Spiral bevel gear, splash lubrication, single-stage speed reduction |
||
|
Steering clutch |
Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
||
|
Steering brake |
Wet, floating band, foot brake with hydraulic booster |
||
|
Final drive |
2-stage speed reduction of spur gear, splash lubrication |
|
|
TRAVEL SPEED |
Gear |
1st |
2nd |
3rd |
|
Forward |
0~3.6 km/h |
0~6.5 km/h |
0~11.2 km/h |
||
|
Reverse |
0~4.3 km/h |
0~7.7 km/h |
0~13.2 km/h |
|
|
UNDERCARRIAGE SYSTEM |
Type |
Swing type of sprayed beam, suspended structure of equalizer bar |
|
Carrier rollers |
2 each side |
||
|
Track rollers |
6 each side |
||
|
Track type |
Assembled, single-grouser |
||
|
Width of track shoes |
560 mm |
||
|
Pitch |
216 mm |
|
|
HYDRAULIC SYSTEM |
Maximum pressure |
14 MPa |
|
Pump type |
Gear pump |
||
|
Discharge |
262 L/min |
||
|
Bore of working cylinder × no. |
120 mm × 2 |
|
|
BLADE |
Blade type |
Straight-tilt |
Angle |
Semi-U-blade |
|
Dozing capacity |
6.4 m3 |
4.7 m3 |
7.5 m3 |
||
|
Efficiency (Theoretical value 40 m) |
330 m3/h |
245 m3/h |
365 m3/h |
||
|
Blade width |
3725 mm |
4365 mm |
3725 mm |
||
|
Blade height |
1315 mm |
1055 mm |
1374 mm |
||
|
Maximum drop below ground |
538 mm |
535 mm |
540 mm |
||
|
Maximum tilt adjustment |
>735 mm |
>500 mm |
>755 mm |
||
|
Weight of blade |
2830 kg |
3254 kg |
3419 kg |
|
|
RIPPER (OPTIONAL) |
Maximum digging depth of 3-shank ripper |
842 mm |
|
Maximum lift above ground |
883 mm |
||
|
Weight of 3-shank ripper |
3802 kg |
||
|
Maximum digging depth of single ripper |
1250 mm |
||
|
Maximum lift above ground |
965 mm |
||
|
Weight of single ripper |
3252 kg |
